$28,500

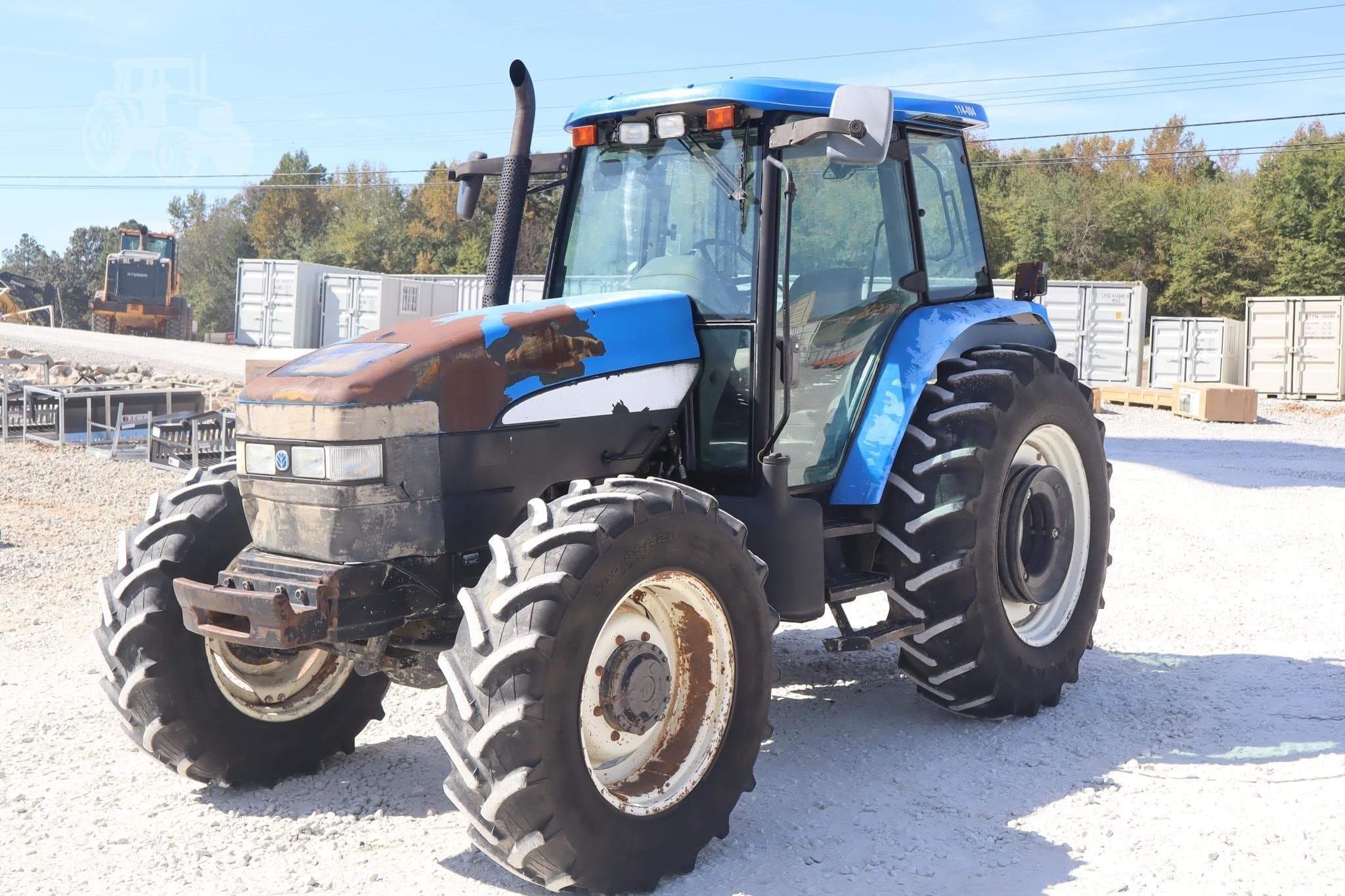

140 HP, 4WD, CAB WITH HEAT AND A/C — ONLY 1,688 HOURS
Used — Fair·1,688 hrs
New Holland TM140
The New Holland TM140 is a 140 hp row-crop tractor built in Basildon, England, with a 7.5L six-cylinder CNH diesel and 115 hp claimed PTO power. It comes in 2WD or 4WD with several transmission choices, up to an 18-speed full power shift. It has a standard cab with heat and A/C, a closed-center load-sensing hydraulic system rated at 28 GPM and 2750 PSI, four rear remotes, and a Cat II/IIIN 3-point hitch.
What a used New Holland TM140 sells for
Listed at $28,500
Not enough sales yet for a range. Guidance, not an appraisal.
New Holland TM140 specs
CabStandard, with heat and air-conditioning
Drive2WD or 4WD
BrakesDifferential hydraulic wet disc
EngineCNH 7.5L 6-cylinder diesel
Weight11353 to 12935 lbs
Rear PTOIndependent, 540/1000 RPM, electro-hydraulic wet disc clutch
SteeringPower steering
Pump Flow28 GPM
Rear Tire18.4R38
Wheelbase107.2 in
Electrical12V, 120 amp alternator, 1300 CCA battery
Mid Valves2 to 4
Front HitchCat II (optional)
Engine Power140 hp (104.4 kW)
3-Point HitchCat II/IIIN, electronic lower-link draft control
Fuel Capacity75.3 gal (285 L)
Hydraulic TypeClosed center load sensing (CCLS)
Front Tire (2WD)11.00-16
Differential LockElectro-hydraulic
Hydraulic Capacity19.3 gal (23.6 gal with power shift transmission)
Hydraulic Pressure2750 PSI
PTO Power (tested)121.1 hp (90.3 kW)
Rear Remote Valves4
PTO Power (claimed)115 hp (85.8 kW)
Transmission Options24-speed partially synchronized; 20-speed partially synchronized; 18-speed six-speed power shift; 18-speed full power sh
Drawbar Power (tested)101.2 hp (75.5 kW)
Rear Lift Capacity (at ends)9828 lbs (11534 lbs optional)
From the New Holland TM140 spec sheet (TractorData.com New Holland TM140 tractor information ↗). Check the nameplate on the unit.
