$450

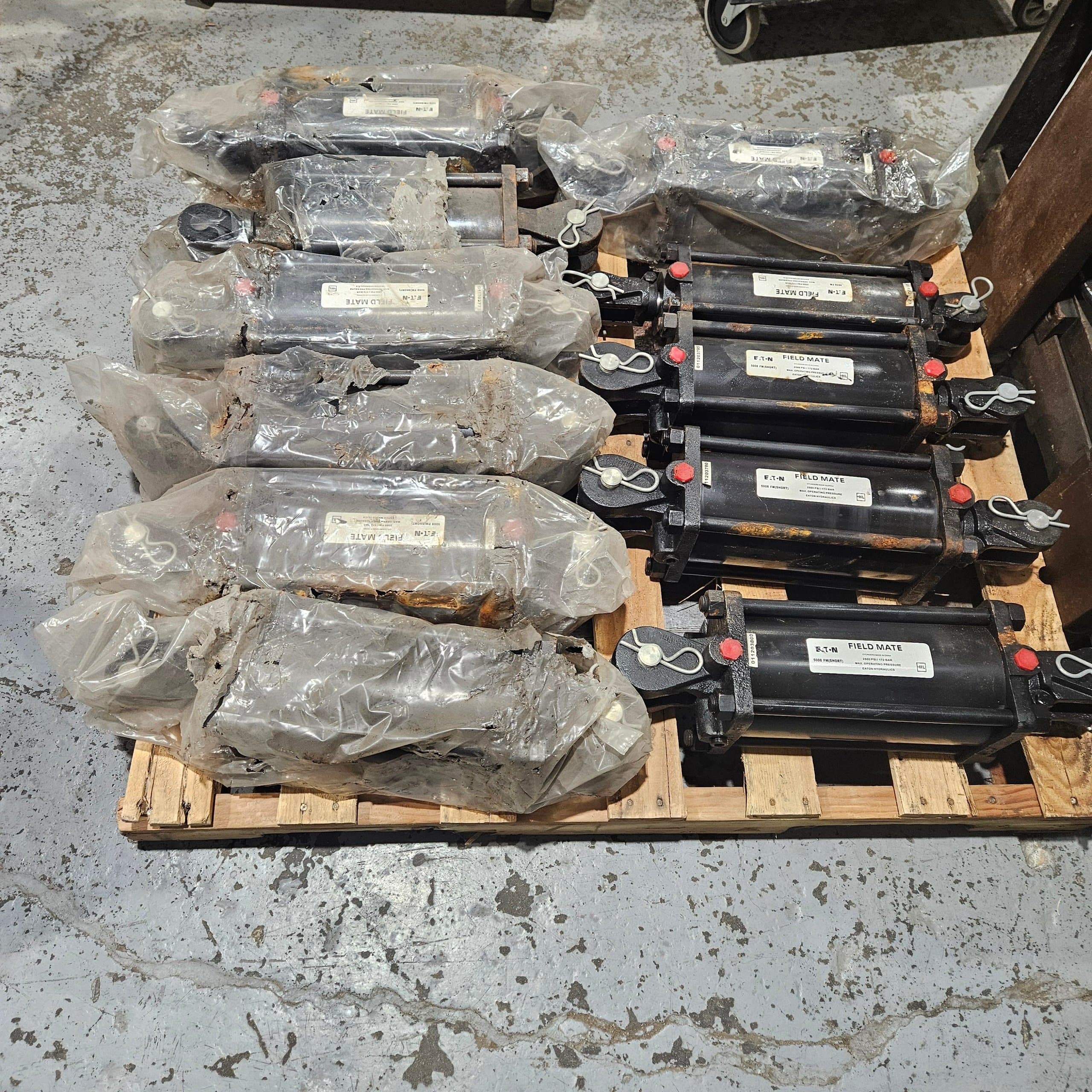

Lot of 12 Eaton Field Mate 5008 FM (Short) hydraulic tie-rod cylinders
New (Surplus)· 5008 FM (SHORT) Tie-Rod cylinder
Eaton Field Mate 5008 FM (Short)
These are Eaton Field-Mate hydraulic tie-rod cylinders, a series of agricultural cylinders that interchange with ASAE-standard cylinders. The series covers bores from 2 to 5 inches and is rated for 2500 PSI operating pressure and 4000 PSI shock pressure. They have ductile iron parts, honed steel tubes, chrome-plated rods and high-strength tie rods. Bore, stroke and rod size for the 5008 FM (Short) were not confirmed, so check them on the cylinders themselves.
What a used Eaton Field Mate 5008 FM (Short) sells for
Listed at $450
Not enough sales yet for a range. Guidance, not an appraisal.
Eaton Field Mate 5008 FM (Short) specs
RodChrome-plated
TubePrecision honed steel tubing
TypeHydraulic tie-rod cylinder, ASAE interchangeable
SeriesEaton (Hydro-Line) Field-Mate agricultural tie-rod cylinders
CatalogH-CA-MC-0001-E3
CastingsDuctile iron components
Tie RodsHigh-strength
Shock Pressure4000 PSI
Long Stroke NoteLonger strokes available at reduced pressure
Operating Pressure2500 PSI rated
Bore Sizes (series)2 in to 5 in
From the Eaton Field Mate 5008 FM (Short) spec sheet (Field-Mate Series Agricultural Cylinders - Eaton Hydraulics - PDF Catalogs ↗), same series as the exact model. Check the nameplate on the unit.
