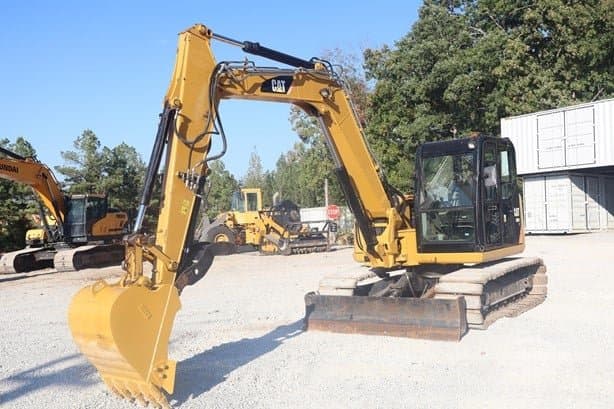

2017 CATERPILLAR 308E2 CR — THUMB, AUX HYD
Used — Good·4,516 hrs
Caterpillar 308E2
The Cat 308E2 CR is a compact-radius mini hydraulic excavator in the 8-ton class with a Cat C3.3B engine rated at 65 hp net and Tier 4 Final emissions. It weighs about 18,519 lb with a cab and digs to roughly 13.6 ft. It has load-sensing hydraulics with 39.6 GPM pump flow plus primary and secondary auxiliary circuits, which suit attachments like the thumb this unit comes with.
What a used Caterpillar 308E2 sells for
Listed at $49,500
Not enough sales yet for a range. Guidance, not an appraisal.
Caterpillar 308E2 specs
Bore3.7 in (94 mm)
EngineCat C3.3B
Stroke4.7 in (120 mm)
EmissionsU.S. EPA Tier 4 Final / EU Stage IIIB
Fuel Tank33 gal (125 L)
Net Power65 hp (48.5 kW) @ 2,400 rpm
Pump Flow39.6 GPM (150 L/min) at 2,000 rpm
Engine Oil3 gal (11.2 L)
Gross Power66.6 hp (49.7 kW) ISO 14396
Displacement203.2 cu in (3.33 L)
Max Dig Depth13.62 ft (4,150 mm)
Cooling System3.7 gal (14 L)
Hydraulic Tank21.7 gal (82 L)
Hydraulic TypeLoad sensing, variable displacement piston pump
Hydraulic System24.8 gal (94 L)
Operating Weight18,519 lb (8,400 kg) with cab
Bucket Digging Force13,534 lb (60.2 kN)
Operating Pressure - Swing3,481 PSI
Stick Digging Force - Long7,891 lb (35.1 kN)
Auxiliary Circuit - Primary33.8 GPM (128 L/min) at 2,734 PSI
Operating Pressure - Travel4,061 PSI
Overhang with Counterweight16 in (406 mm)
Auxiliary Circuit - Secondary16.9 GPM (64 L/min) at 2,524 PSI
Operating Pressure - Equipment4,061 PSI
Stick Digging Force - Standard9,015 lb (40.1 kN)
From the Caterpillar 308E2 spec sheet (Cat 308E2 CR Mini Excavators ↗). Check the nameplate on the unit.
