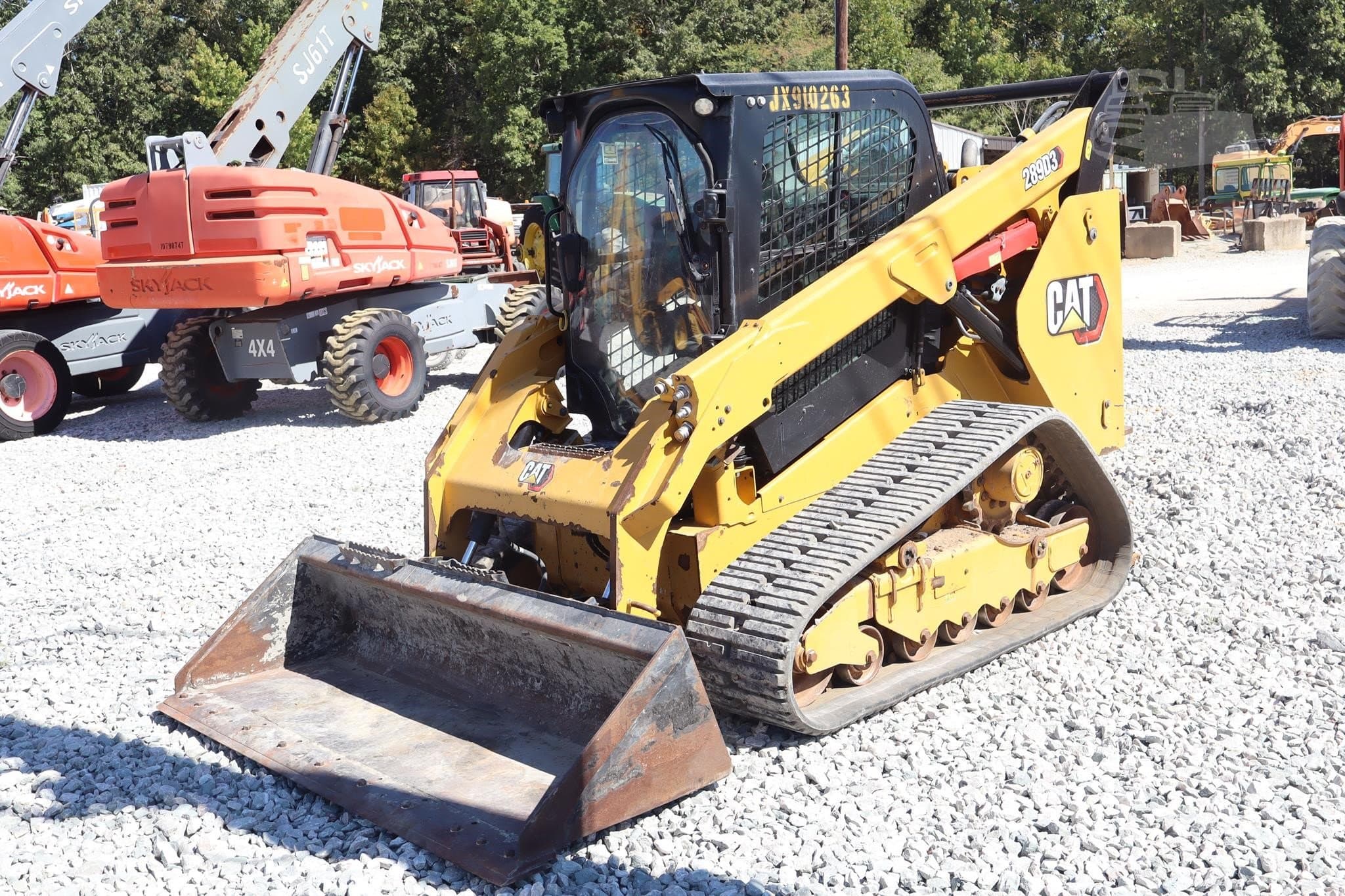

HIGH-FLOW 2022 CAT 289D3, ENCLOSED AC CAB, 2-SPEED, HYDRAULIC QUICK ATTACH
Used — Good·2,700 hrs
Caterpillar 289D3
The Cat 289D3 is a vertical-lift compact track loader (not an excavator) powered by a turbocharged Cat C3.3B diesel engine rated at 74.3 gross hp. It has a rated operating capacity of 2,890 lb at 35% tipping load, a tipping load of 8,255 lb, and maximum loader hydraulic flow of 32 gpm. Two-speed travel reaches 8.3 mph.
What a used Caterpillar 289D3 sells for
Listed at $42,500
Not enough sales yet for a range. Guidance, not an appraisal.
Caterpillar 289D3 specs
Bore3.7 in (94 mm)
EngineCat C3.3B DIT (turbo) diesel
Stroke4.7 in (120 mm)
Peak Torque195 lbf-ft (265 N·m) at 1,600 rpm
Displacement203 cu in (3.3 L)
Tipping Load8,255 lb (3750 kg)
Ground Clearance8.9 in (226 mm)
Net Power (ISO 9249)72.8 hp (54.1 kW)
Net Power (SAE J1349)72.1 hp (53.6 kW)
Gross Power (SAE J1995)74.3 hp (55.4 kW)
Noise Level, Inside Cab83 dB(A)
Overall Length of Track83.8 in (2129 mm)
Travel Speed, One Speed4.5 mph (7.2 km/h)
Travel Speed, Two Speed8.3 mph (13.3 km/h)
Noise Level, Outside Cab103 dB(A)
Length of Track on Ground64.2 in (1630 mm)
Hydraulic Power (calculated)76 hp (57 kW)
Breakout Force, Tilt Cylinder7,291 lb (3307 kg)
Maximum Loader Hydraulic Flow32 gal/min (121 L/min)
Ground Contact Area (450 mm/17.7 in trac2,272 sq in (1.47 m²)
Rated Operating Capacity with Optional C4,370 lb (1985 kg)
Rated Operating Capacity, 35% Tipping Lo2,890 lb (1315 kg)
Rated Operating Capacity, 50% Tipping Lo4,130 lb (1880 kg)
From the Caterpillar 289D3 spec sheet (Caterpillar 289D3 Compact Track Loader spec sheet (Cat) ↗). Check the nameplate on the unit.
