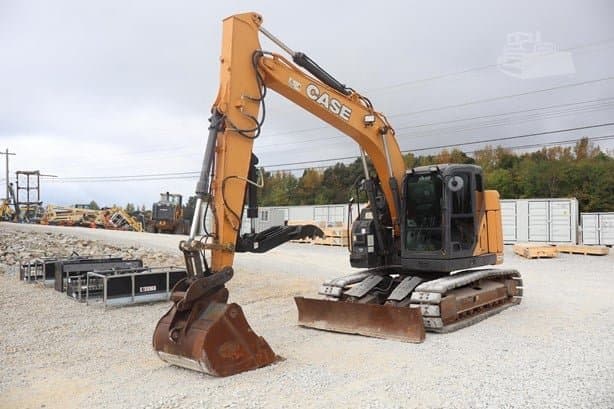

2018 CASE CX145D SR LC EXCAVATOR — A/C
Used — Good·6,548 hrs
Case CX145D SR
The Case CX145D SR is a mid-size, short-radius crawler excavator. It weighs about 33,510 lb and has a 102 hp Isuzu 4JJ1X diesel engine. With the 8 ft 2 in arm, it digs to 18.08 ft deep and reaches 26.71 ft along the ground. It has a 52.9 gal fuel tank and 14,837 lb of arm breakout force, and the short tail swing makes it suited to tight job sites.
What a used Case CX145D SR sells for
Listed at $69,500
Not enough sales yet for a range. Guidance, not an appraisal.
Case CX145D SR specs
FuelUltra-low-sulfur diesel, B5 biodiesel tolerant
EngineIsuzu 4JJ1X, 4-cylinder diesel
Net Power102 hp (76.1 kW) @ 2000 rpm
Max Torque257.5 lb-ft (349 Nm)
Arm Options8 ft 2 in (2.50 m) or 9 ft 10 in (3.01 m)
Dump Height273.23 in (6,940 mm), 8 ft 2 in arm
Final Drive0.6 gal (2.1 L)
Swing Drive0.6 gal (2.2 L)
Displacement183.1 cu in (3 L)
Bore x Stroke3.8 in x 4.2 in (95.4 x 104.9 mm)
Cooling System4.4 gal (16.5 L)
Hydraulic Tank19.9 gal (75 L)
Max Dig Radius326.38 in (8,290 mm), 8 ft 2 in arm
Bucket Rotation178 degrees
Operating Weight33,510 lb (15,200 kg)
Max Digging Depth18.08 ft (5,510 mm), 8 ft 2 in arm
Arm Breakout Force14,837 lb (66 kN)
Fuel Tank Capacity52.9 gal (200 L)
Minimum Swing Radius92.13 in (2,340 mm), 8 ft 2 in arm
Engine Oil with Filter4.5 gal (17 L)
Max Digging Reach on Ground26.71 ft (8,140 mm), 8 ft 2 in arm
Max Vertical Wall Digging Depth16.08 ft (4,900 mm), 8 ft 2 in arm
From the Case CX145D SR spec sheet (Case CX145D SR Excavator Specs, Weight & Dimensions - CodeReady ↗). Check the nameplate on the unit.
