$89,500

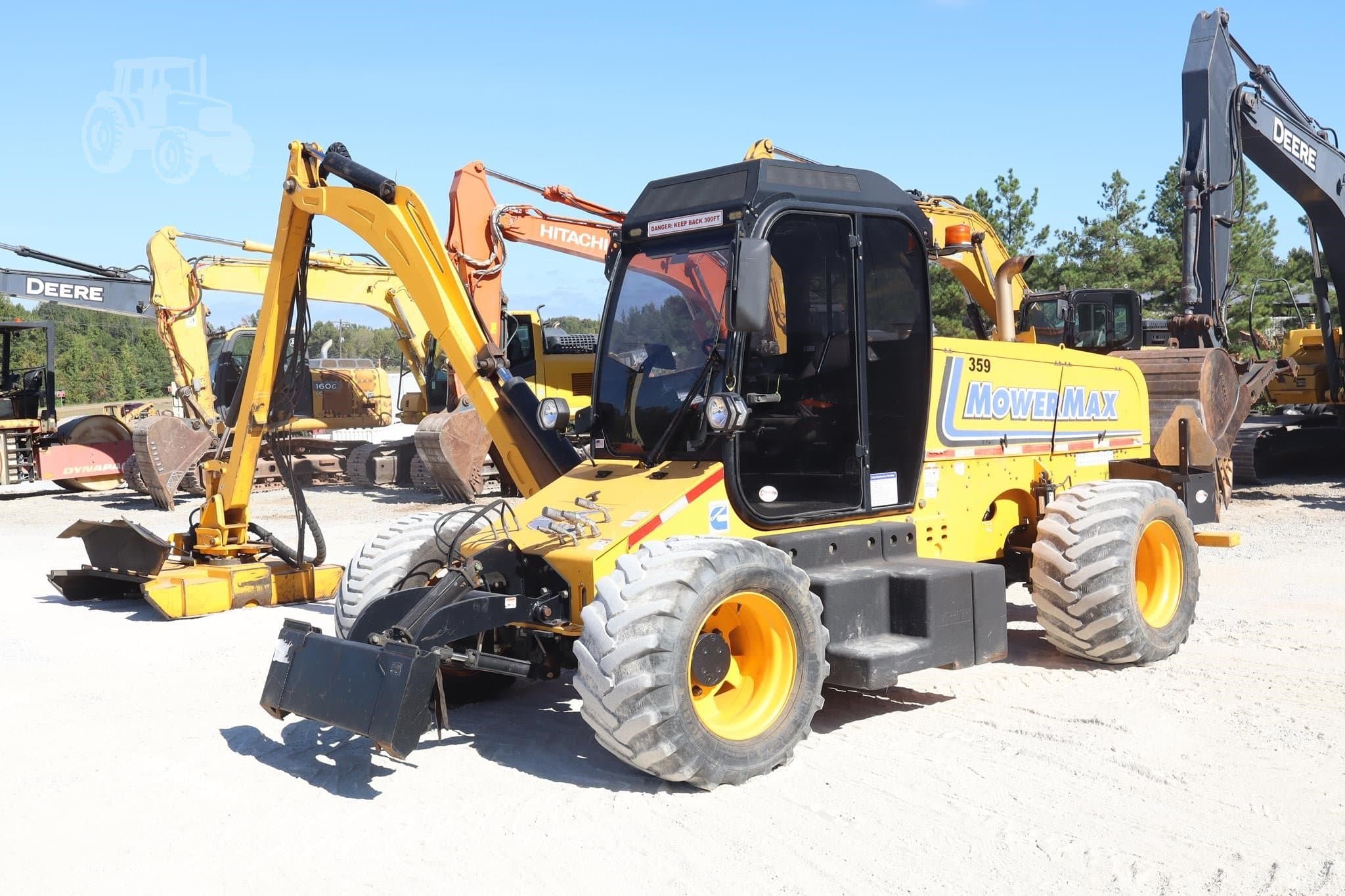

2019 ATMAX MOWERMAX BM BOOM MOWER — HIGH-FLOW, 4WD
Used — Good·3,800 hrs
Atmax MowerMax BM
The Atmax MowerMax is a purpose-built, self-propelled boom mower with full-time 4WD, 4-wheel steering, and a cab-forward layout so the operator can see the cutting area. These specs come from the manufacturer's page for the current Gen 4 model (154 HP Cummins Stage V, 48 gal fuel tank, 0-22 MPH travel speed, booms from 22 to 27 ft). A 2019 unit is an earlier generation, listed elsewhere with a 130 HP Tier 4 Cummins, so check the engine, boom length, and deck on the actual machine.
What a used Atmax MowerMax BM sells for
Listed at $89,500
Not enough sales yet for a range. Guidance, not an appraisal.
Atmax MowerMax BM specs
CabISO-mounted cab, air-ride seat, tilt/telescoping steering
FuelDiesel
DriveFull-time 4WD
EngineCummins F3.8 QSF Stage V turbo diesel
CoolingRemote horizontal radiator/CAC/oil cooler with reversing clean-out fan
ControlsRight-hand joystick for boom and axle stabilizer
Steering4-wheel steering, 3 modes
Fuel Tank48 gal, welded aluminum, locking cap
Boom Swing175° minimum, hydraulic
Horsepower154 HP
Pivot Pins1.5 in AISI 4140 steel, Connex bushings
Work Speed0-8 MPH (2 work modes)
TransmissionHydrostatic, 4-speed, 2 foot pedals
Travel Speed0-22 MPH (2 travel modes)
Boom FunctionsHorizontal swing, vertical lift, dipper reach, head tilt, head door open/close
Rear Differential100% operator-controlled locking
Deck Tilt Cylinder4.0 in bore, 1.50 in rod, 1.5 in 4140 pins
Front DifferentialAutomatic 45% limited slip
Boom Length Options22 ft, 24 ft, 26 ft, 27 ft; outer boom telescopes to 30 ft
From the Atmax MowerMax BM spec sheet (MowerMax Gen 4 Boom Mower - MOWERMAX Equipment Company ↗), same series as the exact model. Check the nameplate on the unit.
